Self-Service Terminal LED Light Module RS232 Multi-Function Control Board

Name: Self-Service Terminal LED Light Module RS232 Multi-Function Control Board
Brand: Boao Intelligence

Intelligent control module for terminal integration and system communication. Model RS232. Sourced from verified Chinese manufacturers.

★★★★★ 4.9 128 reviews 99% positive

? OEM/ODM ? Fast Delivery ?? PayPal Protected ? Global Shipping

Contact for QuoteCustom OEM/ODM pricing available · MOQ applies

MOQ:1 units

Availability:In Stock

Lead Time:2-4 weeks

Request Quote Customize

?? PayPal Protected

? 15+ Years Factory

? 30+ Countries Served

Key Features

Why choose this product? Core advantages that deliver value to your business.

OEM/ODM Expertise

15+ years of custom manufacturing experience. From hardware design to software integration, we bring your vision to life.

Rapid Prototyping

2-4 week development cycle. Efficient production pipeline ensures quick turnaround for samples and bulk orders.

Global Shipping

We ship to 30+ countries with international logistics partners. DHL, FedEx, and sea freight options available.

Secure Payment

PayPal buyer protection for all online orders. Escrow-style payment ensures your investment is protected.

Technical Specifications

Detailed technical parameters and product specifications.

Parameter	Value
產品型號
	訊方式：RS232

Product Description

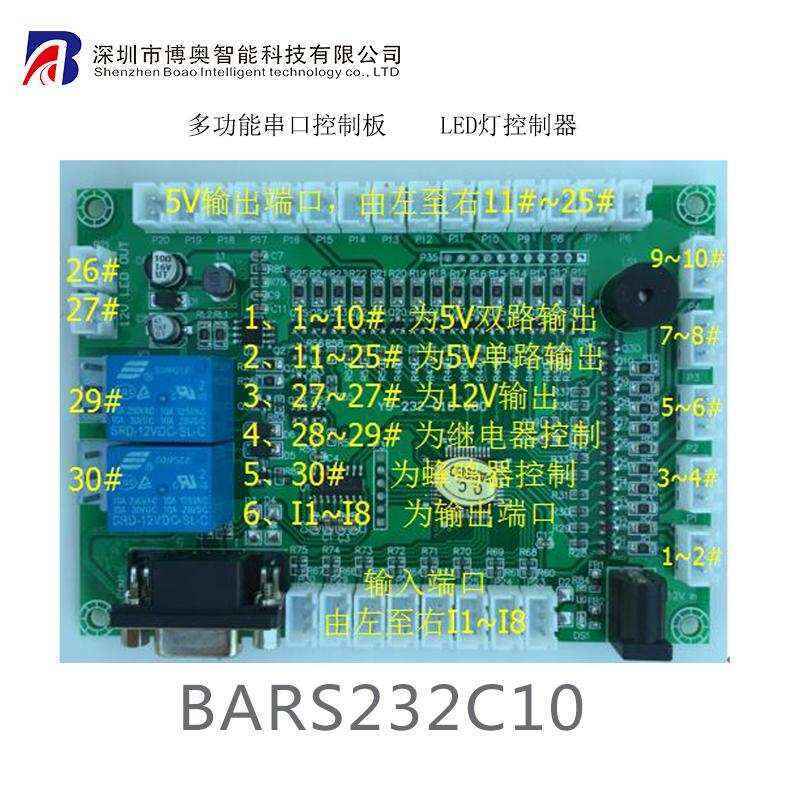

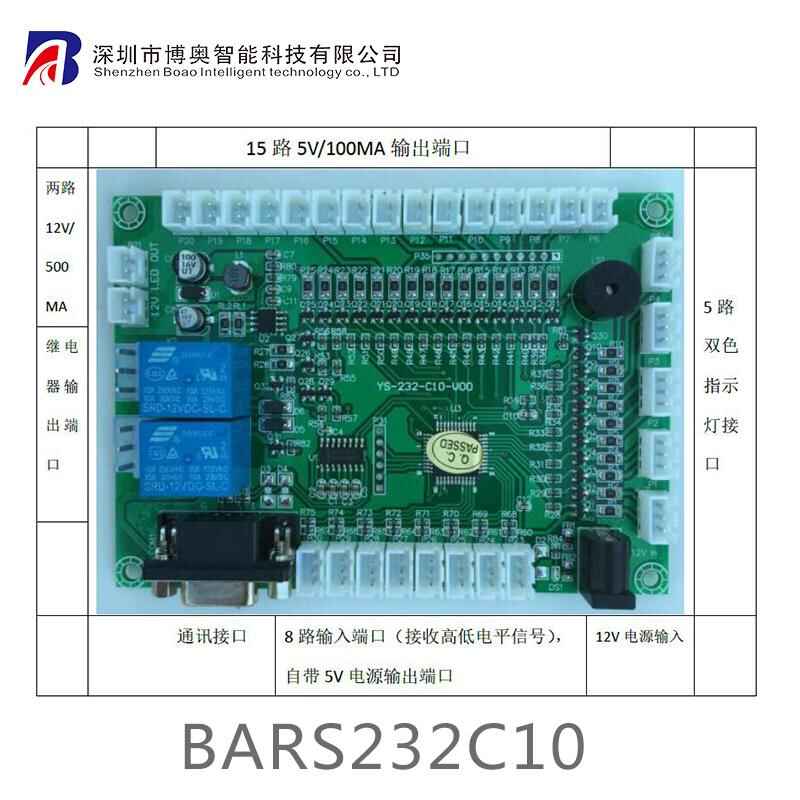

一、概述<o:p></o:p> 232C10是專為自助終端設備配套開發的一款串口控制器模塊，可應用此模塊實現各模塊操作指示燈的提示控制、接收開關量的輸入上傳、繼電器常開、常閉輸出等，并帶有看門狗功能，利用此功能可對某一模塊實現狀態自檢、硬復位功能。<o:p></o:p> 二、技術規格<o:p></o:p> 1.? 通訊接口及協議：<o:p></o:p> l 串口232通訊，標準DB9母座接口<o:p></o:p> 2.? 接口及參數：<o:p></o:p> l 15路5V/100mA輸出，可控制各操作提示燈條；<o:p></o:p> l 5路共陰極5V/100mA輸出，可控制雙色指示燈條，區分正常、異常狀態；<o:p></o:p> l 2路12V/500mA輸出，可外接高拍儀補光燈、12V繼電器模塊；<o:p></o:p> l 2路繼電器常開、常閉端口,可外控制各模塊電源，實現模塊的斷電復位功能；<o:p></o:p> l 8路高低開平輸入接入端，可外接門禁傳感器、紅外對射、反射、振動報警器等傳感器模塊，實現信號上傳功能；并帶5V電源接口，可為外接模塊提供電源。<o:p></o:p> l 1路蜂鳴器，可實現聲音提示功能，如當某一重空門打開超過一定時間，上層可發指令打開蜂鳴器，以提示用戶注意關門。<o:p></o:p> 4. 電源、電壓<o:p></o:p> l 控制器電源輸入為12V/1A<o:p></o:p> 5、控制器工作條件：<o:p></o:p> l 工作溫度：-10℃～+70℃<o:p></o:p> ? 存儲溫度：-20℃～+85℃<o:p></o:p> l 濕度：5%～90%，無結露；<o:p></o:p> 三、控制器接口圖示<o:p></o:p> <img src="/upload/2019-10-20/bca329b965f704da24a996696a9f6882.png" alt="" />
